DIGITAL AMPERE – HOUR CONTROLLER
Powerman’s Model No.510
Digital Ampere – Hour Meter, Model No.510, is an Ideal Electronic instrument for the measurement of Ampere – Hour of Batteries or any D.C. Source. Digital Ampere – Hour Meter is connected between the battery and the load as a series element.
- Latest Microprocessor Technology used.
- Direct reading of Ampere – Hour capacity.
- Accurate, reliable, compact and economical.
- Finds application in battery capacity test, battery formation, monitoring of solar cells etc.
- Registration of current consumption in Electric Vehicles, Railway, Ships etc.,
We have different Models of Digital Ampere – Hour Meter as follows :
No.510.1: For Bi-directional Measurement. The current with 3½ Digit Digital Meter and Ampere – Hour indicator with 4 digital Seven segment LED Display A Toggle switch in the rear panel changes direction.
No.510.2: For Bi-directional measurement of ampere – Hour Two separate Ampere Hour meter indicates one positive and the other Negative direction Ampere – Hour.
No.510.3: This is Bi-directional meter has a 3½ Digit Ammeter indicates current with direction (+ or -) The 4 Digit Seven Segment LED Counts up when the current flow in the +ve direction. When the current direction changes to –ve the Counter counts down form the total value.

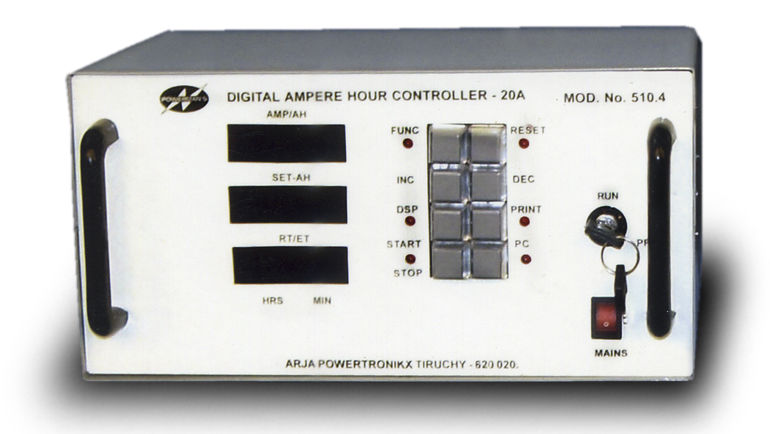

No.510.4: This is an Ampere-Hour Indicator Cum controller. This Meter Consists of a 3½ Digit Ammeter, 4 Digit Seven Segment LED Display of Ampere-Hour Indication. Front panel key switches are provided by which the ampere-Hour can be set. Once the set Ampere-Hour is reached a relay operated and the ampere – Hour counting Stopped.
No.510.5: This meter is 3½ Digit Ammeter and 4 Digit Ampere Hour Indicator. This is a Bi-directional Meter in which, when current flows into the Battery the current and Ampere-Hour is indicated taking into consideration of the efficiency of the Battery. When the current is taken from the Battery, the actual capacity is shown by the meter.
Technical Specifications :
| Standard shunt used | 75m V of 10A, 50A, 100A, 500A, 1000Amps |
| Polarity | Uni polar or Bi-polar |
| Indication | 4 Digit Seven Segment LED |
| Current Range | 10Amps to 1000 Amps |
| Casing and monitoring | Table Top, Panel Mounting or DIN Size |
| Accuracy | ± 1% |
| Mains | 230 V AC 50 Hz/60 Hz or 12 V DC |
