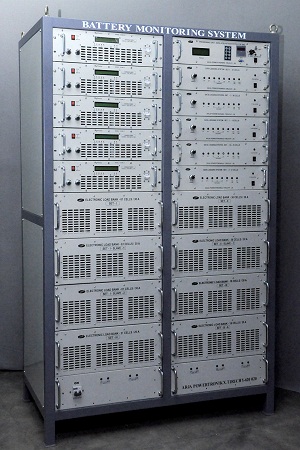

BATTERY MONITERING SYSTEM
Powerman’s Mod No.511

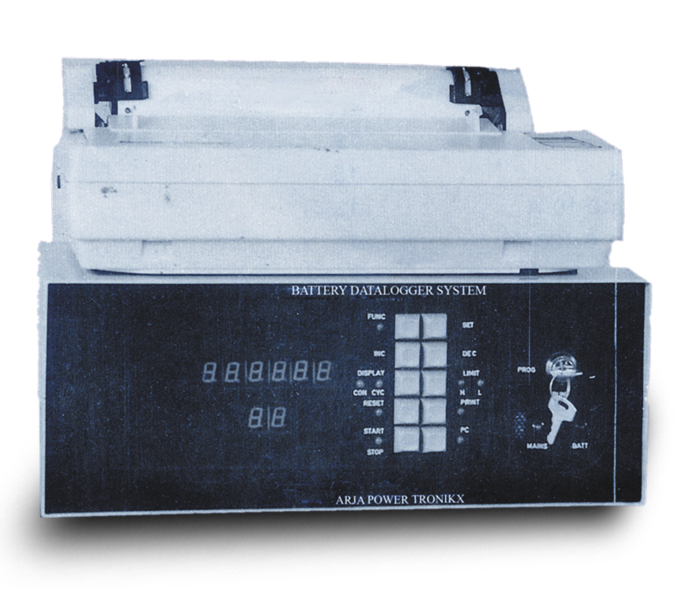

BATTERY DATA LOGGER SYSTEM
Powerman’s Model No.509
Battery Data Logger System Model No.509 has been designed with latest Microprocessor technology to continuously monitor the voltage, Current and Electrolyte Temperature and give a print-out of real Time, Elapsed Time, voltage Current and Electrolyte temperature at pre-set print interval. During power failure the Data logger logs the data and gives the print-out as soon as power resumed. It also gives the print-out of when the power failure occurred and when the power resumed.
- Monitors & gives print out continuously various parameters
- Logs Battery Terminal voltage, Current, Electrolyte Temperature, Real Time, Elapsed Time, Date etc.
- Continue to log the data during power failure with the help of a 12V std by Battery
- Indicates when the power failed and when the power resumed
- Provision to select the print interval
- Provision to set alarm low / high limit for voltage channels
- Provision to print the select channels only
- Facility to interface with standard PC through RS-232 serial link
- Acid / Alkali resistant RTD sensors for Temperature
Technical Specifications :
| Voltage Channels | 20 nos |
| Current Channels 0-10 A/0-100A | 1 nos |
| Temp. Channels | 2 nos |
| Voltage Range (all channels) | 0-30 V |
| Voltage Accuracy | +/- 0.5% |
| Amp Hour | 999.9 AH 99999 AH |
| Temperature Accuracy | +/- 1 C |
| Temperature Range | 0-100 C |
| Temperature Probe | Acid / Alkali Resistant RTD |
| Print Interval | Selectable 30 Sec. to 99 Hrs. 59 Mins |
| Interface with IBM – PC | Through Rs.232 serial link |
| Mains | 230 V +/- 10% AC 50 Hz |
| Standby Battery | 12 V DC 40 AH Battery |
