Automatic Life Cycle Tester
Powerman’s Model No.501
Automatic Life Cycle Tester Powerman’s Mod No.501 consist of precise timer which changes the state of Battery from discharging to charging and back to discharging at a preset time interval. The test stops after the set No. of cycles reached. In case of power failure, the testing stops and when the power is resumed the testing starts from the point where it shopped.
- Tests the Batteries in accordance with ISI, DIN and other standards.
- For Automotive, Industrial and Maintenance Free Batteries.
- For 12V, 24V Volt System.
- Charge and Discharge 5-300 Amps DC.
- Designed with latest Microprocessor Technology.
- 7 Segment LED display and keyboard for programming and operation.
- Simple to operate by non-technical personnel.
- Visual indicators for Charge/Discharge.
- Audio and Visual indicators for Test Stop.
Technical Specifications :
| Testing of Battery | 1 or 2 Nos of 12 V Battery |
| Mode of Discharge | Constant Current |
| Mode of Charge | Constant Voltage / Constant Current |
| Charge Stage | Single stage and Two stage selectable |
| Charge / Discharge Time | 1 Min. to 99 Hrs. 59 mins. by key board switches |
| No. of Cycles Display | Up to 9999 by 7 segment LED |
| Test Stop | Can be set up to 9999 cycles by key board |
| Voltmeter / Ammeter | 3½ digit digital Voltmeter / Ammeter |
| Protection | Against Short Circuit, Over Load and Reverse Polarity |
| Mains | 230 V V ± 10% AC H2 |
Automatic Capacity Tester
Powerman’s Mod No.502
Automatic Capacity Tester, Powerman’s Mod No.502 is a fully automatic system for determining the Ampere-Hour capacity of Lead Acid, Silver Zinc, Ni-cd batteries as per various National and International standards. The Automatic Capacity Tester, Discharges battery at a Constant Current rate to an end voltage. The end voltage is selected by a keyboard. The current is adjustable by means of 10 turn precision pot. An elapsed time counter records the actual time of test in Hours. The test is terminated when the end voltage is reached giving audible and visual indication.
- Using with latest Microprocessor Technology.
- To select the test provision either end of pre-set voltage / pre-set time.
- Cutoff voltage and cutoff time can be pre-set by key board.
- In can tests the capacity of batteries as per ISI, DIN, SAE, JIS, IEC, BS etc.
- For Automotive, Industrial and Maintenance Free Batteries.
- 7 Segment LED display and keyboard for programming and operation.
- Discharge current up to 500A DC.
Technical Specifications:
| Testing of Battery | 1 or 2 Nos of 12 V Battery |
| Discharge Current | 10A, 20A, 50A, 100A, 250A, 500A |
| Mode of Discharge | Constant Current |
| Discharge Time | Up to 99.99 Hrs. by 7 segment LED display |
| Test Stop | Either by preset end voltage / preset time. |
| End Voltage | Can be set any voltage up to 19.99 V. |
| End Time | Can be set any time up to 99.99 Hrs. |
| Voltmeter / Ammeter | 3½ digit digital Voltmeter / Ammeter |
| Protection | Against short circuit and overload. |
| Mains | 230 V V ± 10% AC H2 |

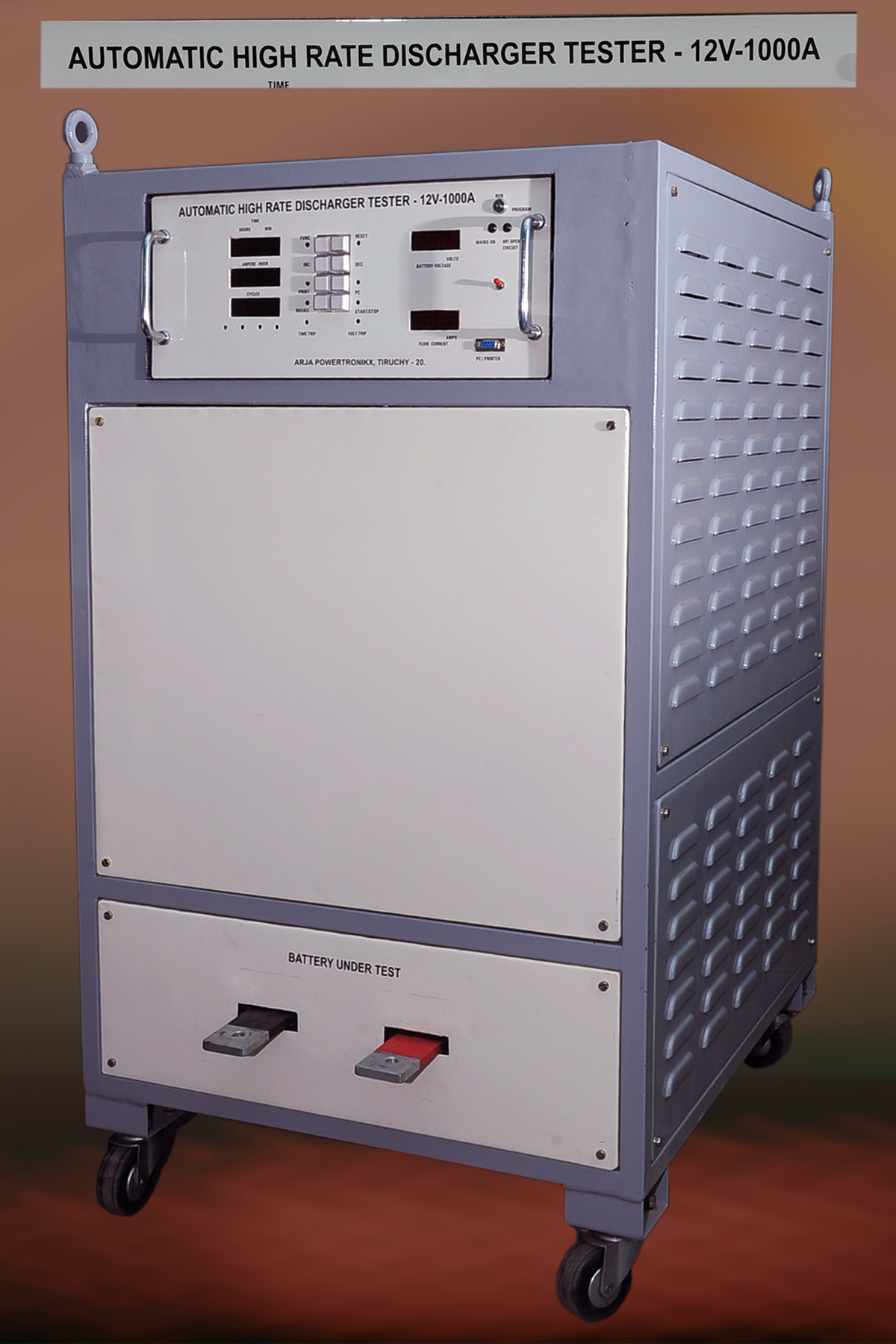

Automatic High Rate Discharge Tester
Powerman’s Mod No.504
Automatic High Rate Discharge Tester, Powerman’s Mod No.504, is a complete system for performing the High Rate Discharge on Lead Acid Batteries in accordance with various National and International Standards. The equipment designed with Microprocessor, Discharges the battery at a Constant Current to the pre-set voltage level. An elapse time counter records the discharge duration in seconds. Test Termination is automatic.
- Using with latest Microprocessor Technology.
- Tests the batteries for cold and warm cranking performance as per ISI, DIN.
- Automatic test termination by pre-set end voltage / pre-set end time.
- Discharge at constant current.
- Solid state load and no moving part.
- End voltage / End time can be pre-set by key board in the panel.
- Automatic recording of 5th Sec volt. And subsequent voltage for every 30 secs.
- Optional centronic output of tested data of volt. & current with respect to time.
Technical Specifications:
| Testing of Battery | 1 or 2 Nos of 12 V Battery |
| Discharge Current | 10A, 20A, 50A, 100A, 250A, 500A |
| Mode of Discharge | Constant Current |
| Discharge Time | Up to 9999 sec. by 7 segment LED display |
| Test Stop | Either by preset end voltage / preset time. |
| End Voltage | Can be set any voltage up to 19.99 V. |
| Voltmeter | 3½ digit digital Voltmeter. |
| Ammeter | 3½ digit digital Ammeter |
| Protection | Against short circuit and overload. |
| Mains | 230 V V ± 10% AC H2 |

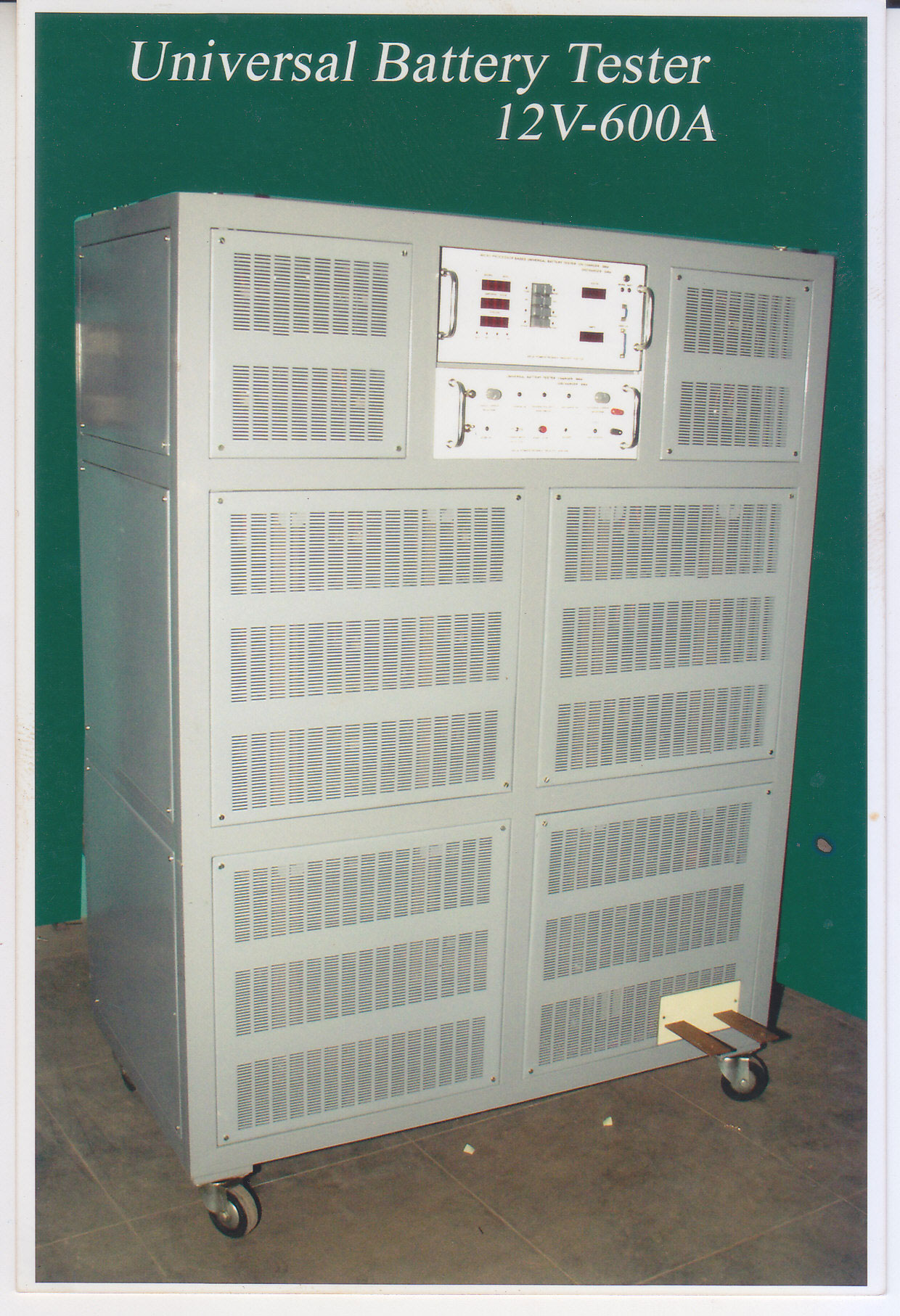

Universal Battery Tester
Microprocessor based universal battery tester is fullyAutomatedsystem, test the various parameter of lead acid (Automotive, tubular, VRLA, MF), silver zinc, Ni-Cd, Ni-mh batteries with various National and International standards. In this equipment charging Discharging can be done individually. Capacity, life cycle for any specification can be done. In case of power failure the test stops and when the power resumed the test starts from the point where it stopped. It having the facility of individual cell monitoring.
Technical Specifications:
| TESTING BATTERY | 2V TO 30V |
| MODE OF DISCHARGING | Constant current/ CR. |
| Mode of Charge | Constant voltage/ CC. |
| CHARGE/ DISCHARGE TIME | 1 MIN-99 Hrs 59 MIN. |
| Test Stop | Set time/ set volt/set Ah Set No of cycles. |
| VOLTMETER/AMMETER | 3 1/2 / 4 1/2 digit 7 seg LED LCD module. |
| BUILT IN DATA LOGGER | Individual cell monitoring 9 channels. |
| DATA OUTPUT | Serial/USB to pc/printer. |
| POWER SUPPLY | 230V A/C. |
| STANDBY | 12V Battery. |

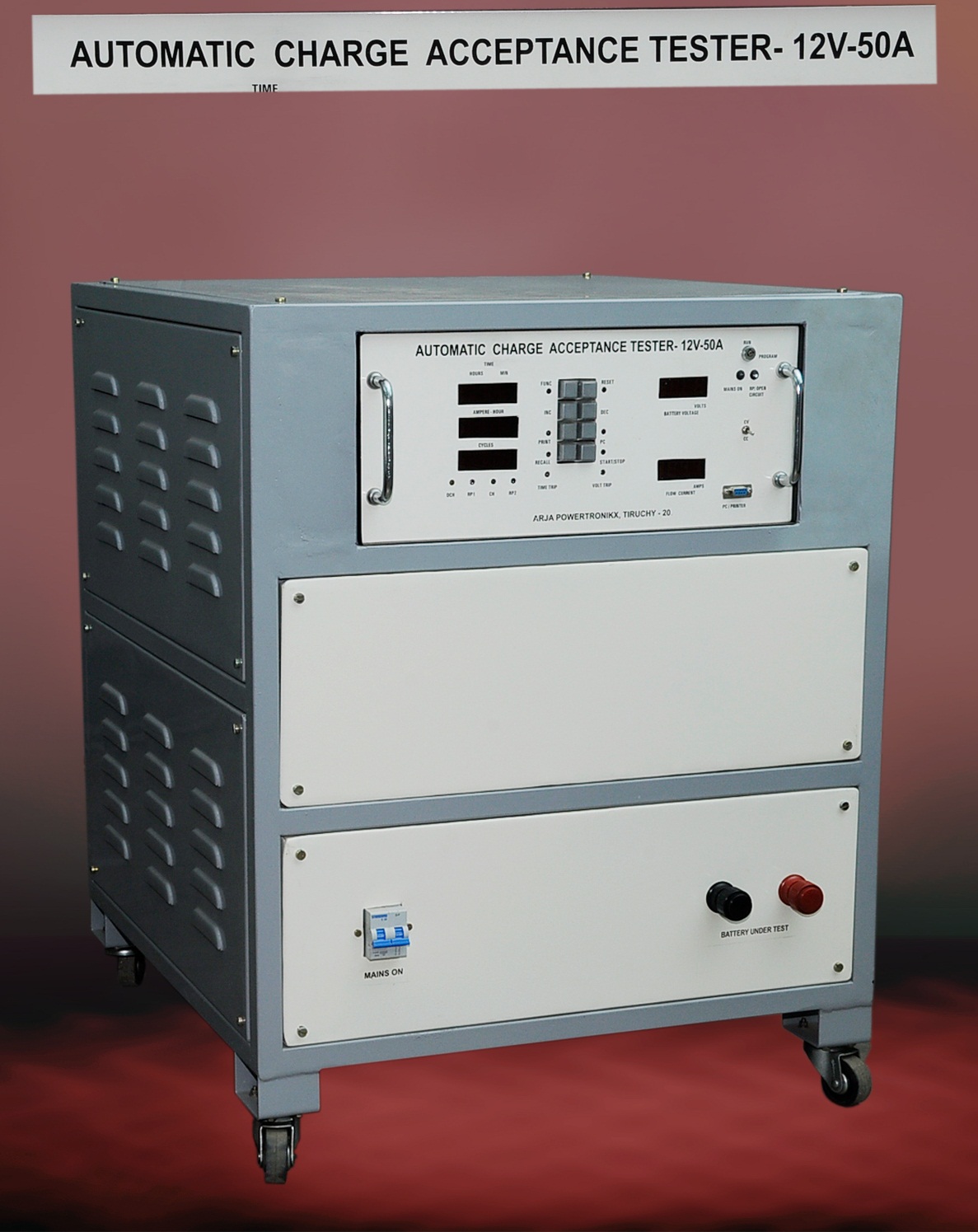

Automatic Charge Acceptance Tester
Latest microprocessor based system to do the charge Acceptance tester for lead acid batteries as per Indian standard.It consists of precise timer, constant potential charger, and discharger and cold chamber. It can program, depends upon the battery to be test. It records the tested parameter in memory. After test over data can be transferred to printer or pc through Serial communication.
Technical Specifications
| TESTING BATTERY | 1 No.of 6v or 12v. |
| MODE OF DISCHARGING | Constant current |
| Mode of Charge | Constant voltage |
| Test Stop | Time set/ A.H Set. |
| METER | LCD/LED 3 1/2 digit. |
| COLD CHAMBER | 0 TO 20 DEGREE |
| DATA OUTPUT | Serial/USB to pc Or printer. |
| POWER SUPPLY | 230V A/C. |
Charge Endurance Tester
Designed to test over charge (Endurance) of Auto motive stationary as per IS 7372, 13369 respectively. It is designed to work continuasly more then 100 hrs. it is controlled by precise pre-settable timer. After set times it will stopped. It will indicate total ampere hour. While continues charging it will maintain constant current + or – 1/. Accuracy. It is protected against short circuits.
Technical Specifications:
| NO. OF TEST BATTERY | 2V to 12V |
| TYPE OF BATTERY | Automotive & stationary |
| CURRENT RANGE | 50A to 300 Amps. |
| TIMER | 999.99 hrs. |
| AMP. HOUR | 9999 A.H |
| VOLT METER / AMMETER | 3 ½ digit, digital meter |
| MAINS | 230V A.C 50 Hz. |
